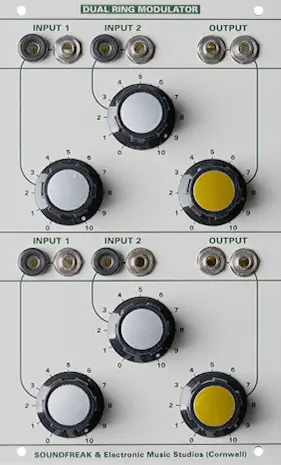

Dual Ring Modulator
Soundfreak Synthesizer Module
Our Dual Ring Modulator packs two identical VCS3 ring modulators in one module. Both sections are identical, so we will expose its
parameters once.
The VCS3 ring modulator is an audio mixer that combines two signals and outputs their sum and difference while removing the original
frequencies.
When you send more complex waveforms into a ring modulator such as sawtooth and pulse, it generates more metallic and clangorous sounds
due to the shifting and often discordant harmonic relationships between the richer harmonics of these waveforms.
By combining and subtracting two input signals, this module produces complex, enharmonic textures. An essential tool for crafting rich, experimental sounds.
PRICE: 1260 €
Soundfreak RING MODULATOR Manual
Check the other modules
Triple VCO
The Triple Oscillator consists of three independent oscillators. They are identical in controls but different in range and waveforms.
More info

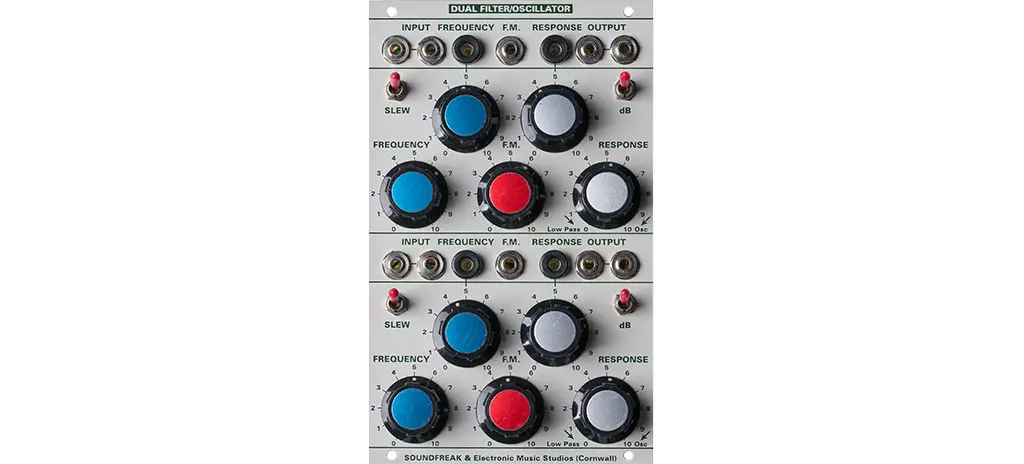

Dual Filter Oscillator
The Dual Filter/Oscillator consists of two independent, identical filtering circuits modelled over the Filter/Oscillator section of the VCS 3, with some extra features.

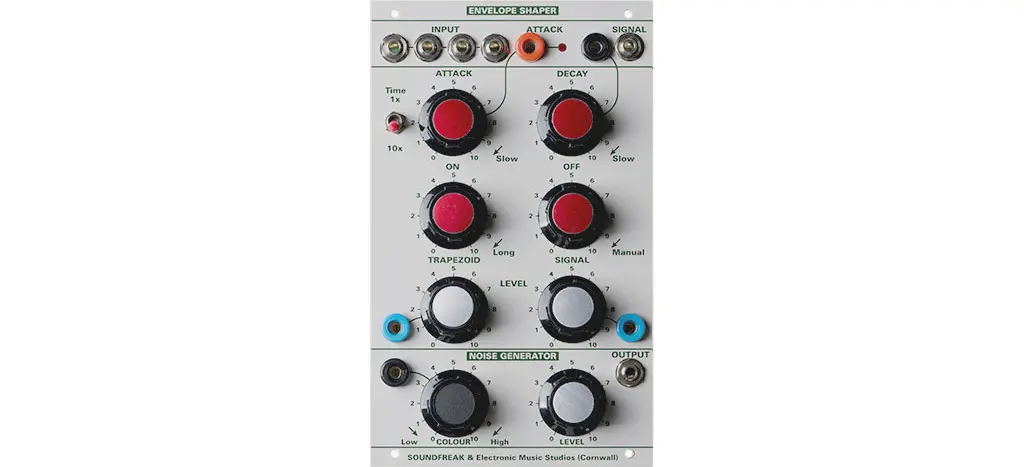

Envelope Shaper
